50m3/h 60m3/h Portable Concrete Batch Plant Fully Automatic Concrete Batching and Mixing Plant

Name: 50m3h 60m3h Portable Concrete Batch Plant Fully Automatic Concrete Batching and Mixing Plant
Brand: HENGYOU
Price: 1 USD

Quality 50m3/h 60m3/h Portable Concrete Batch Plant Fully Automatic Concrete Batching and Mixing Plant for sale

Video outgoing-inspection : Provided

Machinery Test Report : Not Available

Core Components : PLC, Engine, Bearing, Gearbox, motor, Pressure vessel, Gear, Pump

Power Type : Electric

Place of Origin : Henan, China

Brand Name : HENGYOU

Power : 37kw

Dimension(L*W*H) : /

Weight : 11420 kg

Warranty : 1 Year

Machine Type : Production line

Applicable Industries : hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising C

Showroom Location : None

Marketing Type : Ordinary Product

Warranty of core components : 6 Months

Condition : New

Contact Now

50m3/h 60m3/h Portable Concrete Batch Plant Fully Automatic Concrete Batching and Mixing Plant

Function
A.High quality concrete mixer,twin shaft type or planetary typeB.Aggregate batcher can be customized
C.Cement silo is optional
D. Aggregate feeding system can adopt skip hopper or belt conveyor

Model	HZS25	HZS35	HZS50	HZS120
Discharging Capacity (L)	500	750	1000	2000
Charging Capacity(L)	800	1200	1600	3200
Maximum Productivity(m³/h)	25	35	50	120
Charging Model	Skip Hopper	Skip Hopper	Skip Hopper	belt conveyor
Standard Discharging Height(m)	1.5~3.8	2~4.2	4.2	3.8~4.5
Number of Species of Aggregate	2~3	2~3	3~4	4
Maximum Aggregate Size(mm)	≤60mm	≤80mm	≤80mm	≤120mm
Cement/Powder Silo Capacity(set)	1×100T	2×100T	3×100T	4×100T or 200T
Mixing Cycle Time(s)	72	60	60	60
Total Installed Capacity(kw)	60	78.5	111	210

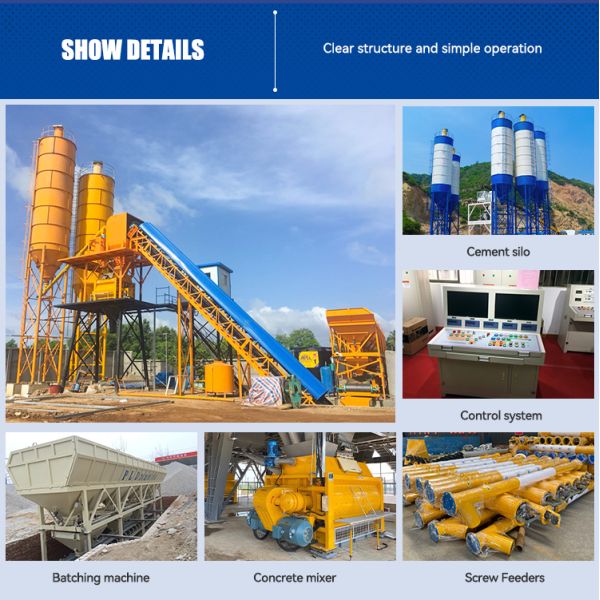

50m3/h 60m3/h Portable Concrete Batch Plant Fully Automatic Concrete Batching and Mixing Plant Images
